Detachable gooseneck lowbed semi-trailer

4 Axle Detachable gooseneck lowbed semi-trailer

1.Extra Large Load Capacity: Detachable gooseneck lowbed semi-trailer of carrying oversized and overweight cargo, making them suitable for transporting large items.

2.Automation function: The height of the loading platform can be automatically raised and lowered, and the length of the cargo platform can be arbitrarily spliced. It adopts hydraulic fully automatic steering, which improves the convenience of operation and transportation efficiency.

3.Low center of gravity design: Detachable gooseneck lowbed semi-trailer uses steel radial wide wheel rims with small diameter and large load capacity. Each tire can withstand a load of about 4 tons under low-speed operating conditions, thereby reducing the vehicle's center of gravity and improving driving stability.

Contact Now E-Mail Telephone WhatsApp

Product Details

Characteristics of Detachable gooseneck lowbed semi-trailer

Detachable gooseneck lowbed semi-trailer is usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, agricultural machinery (such as harvesters, wheeled tractors, conveyors, etc.), engineering machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and other heavy cargo. The lower the center of gravity, the better the stability and safety, and the stronger the ability to transport ultra-high cargo and pass overhead obstacles.

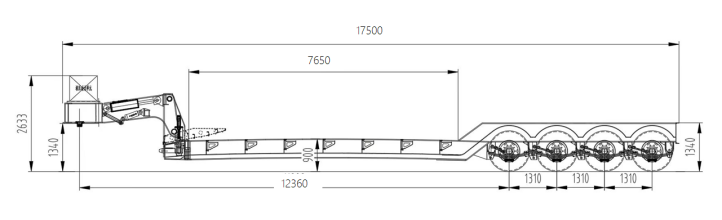

Low flatbed semi-trailer usually adopts a concave beam (or well shaped) frame, which means that the front section of the frame is a goose neck (the traction pin at the front end of the goose neck is connected to the traction saddle on the tractor, and the rear end of the goose neck is connected to the semi-trailer frame), the middle section is the cargo platform (the lowest part of the frame), and the rear section is the wheel frame (including the wheels).

When loading mechanical equipment onto a regular low flatbed or fixed goose neck low flatbed semi-trailer, it is usually done from the rear end of the semi-trailer, that is, by moving the mechanical equipment from the rear frame or removing the wheels, and then fixing the mechanical equipment onto the semi-trailer. Due to the fact that the rear wheel frame is always positioned higher than the shipping platform, this loading method has many drawbacks. Firstly, when moving mechanical equipment from the rear wheel frame, it is necessary to provide a suitable slope or ladder, and if necessary, a considerable length of ladder is needed to provide a slope suitable for the up and down of heavy mechanical equipment. By loading in this way, mechanical equipment is prone to slipping or tipping off from the ladder; When it leaves the ramp, it is also prone to falling onto the semi-trailer cargo platform, causing excessive impact loads on the platform. If the wheels are removed and the semi-trailer body touches the ground to load mechanical equipment, a winch or lifting mechanism must be used to lift the body back to a height where the wheels can be reinstalled. Therefore, additional equipment is required. This operation is time-consuming and carries certain risks. In addition to loading and unloading from the rear of the low flatbed semi-trailer, it can also be loaded and unloaded from both sides. There are also many defects in loading and unloading from both sides, for example, loading and unloading operations require a wider operating area, which is difficult to achieve under general operating conditions. In addition, loading and unloading from both sides is only applicable to certain specific goods, such as tracked self-propelled mechanical equipment (which generally requires the use of sleepers to provide suitable slopes during loading and unloading, and the mechanical equipment is prone to damage the cargo platform or cause uneven loading when turning direction on the cargo platform) or heavy and oversized goods (such as limited lifting height required for loading and unloading goods). Due to the potential drawbacks of the above-mentioned loading and unloading methods, the front loading and unloading method is currently used to eliminate these issues, and it has become the preferred transportation method for heavy machinery and equipment.

Detachable gooseneck lowbed semi-trailer
