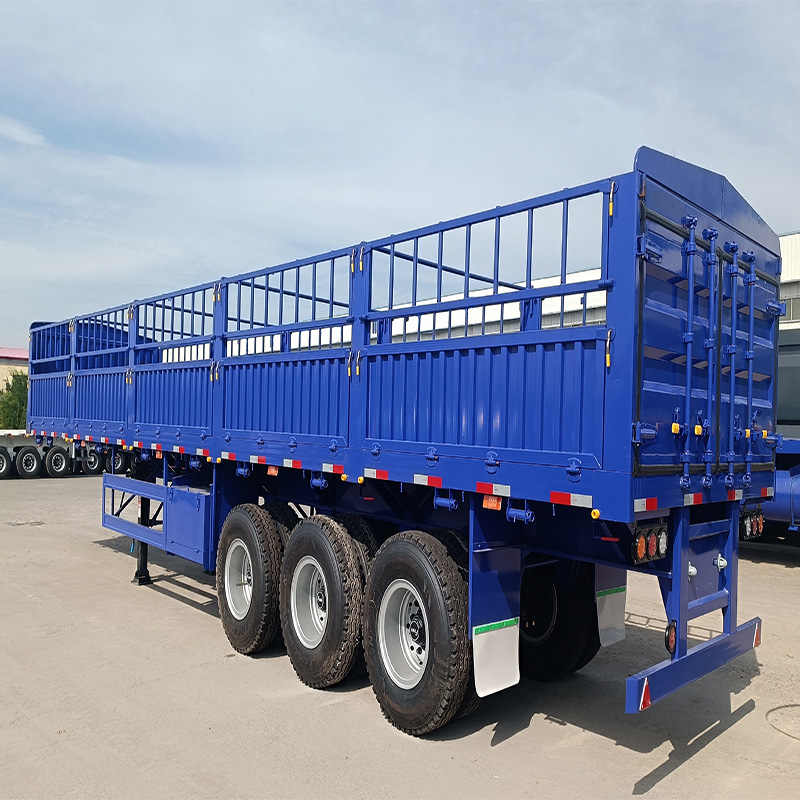

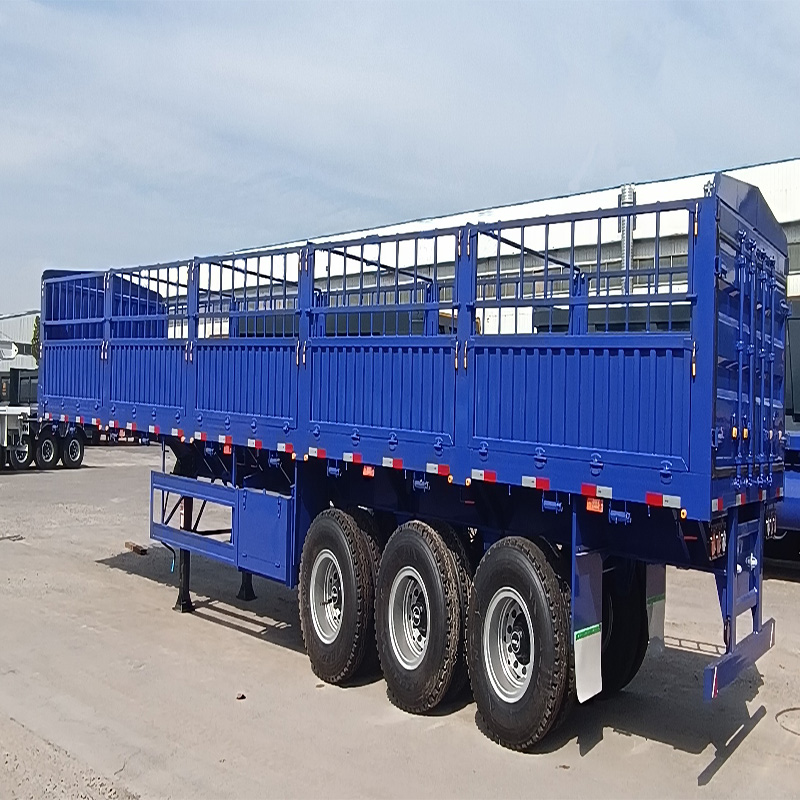

3 Axle Cargo Fence Semi Trailer

A fence semi trailer is mainly used in logistics systems supporting ships, ports, routes, highways, transfer stations, bridges, tunnels, and multimodal transport.

3 Axle Fence cargo trailer feature

1. Fence cargo trailer’s overall body is made of high quality steel, advanced technology, strict production process, reliable performance and reasonable structure.

2. Cross beam structure, the longitudinal beam can generally choose straight beam or gooseneck beam.

3. Suspension adopts non-vertical steel plate pressed rigid suspension, made of tandem leaf springs and suspension bearings, with reasonable structure, high rigidity and strength, used to support the load to mitigate the impact.

Contact Now E-Mail Telephone WhatsApp

Product Details

3 Axle fence semi trailer application

A fence semi trailer is generally used to transport bulk cargo. lt is mainly used for long-distance transportation. Generally, Platform trailer can transport 30-80 tons.If it is a large amount of transportation or different needs, we can customize it, or platformtrailer some deformed vehicles.

3 Axle fence semi trailer specification

Payload: 40,000kg

Tare weight: 73,00kg

Dimension: 13000x2500x1550mm+(with removable fence 2200mm)

Wheelbase: 1310mm

Main beam: Beam height 500mm, upper plate-14mm, bottom plate double 8mm,middle plate-16mm, made of Q345 steel

Cross/side beam: Q235, channel steel

Floor: 3 mm diamond steel plate

Painting:Complete chassis sand blasting to clean rust, coat of anti-corrosiveprime,2coatsof finalpaints

Tool box: 1pieces

Welding: Long member beams be CO2 Arc welded by 80% penetration on theexternal side and bead.

Axle: 3x13ton FUWA Axle
