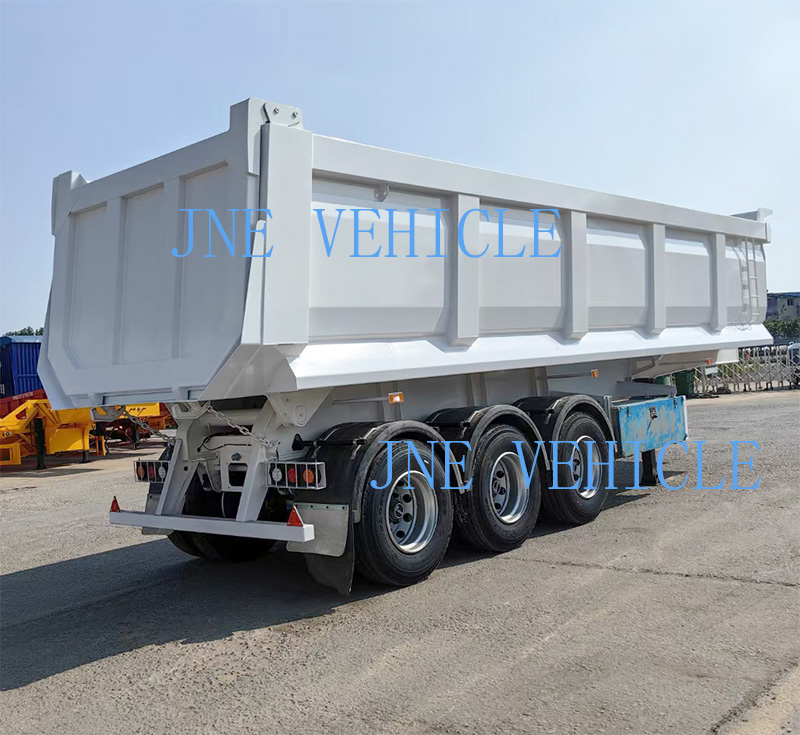

Tipper Trailer 50 Ton

Cleaner unloading: Tipper Trailer there are no dead corners at the corners of the U-shaped cargo box, making it less likely to stick to the box during unloading, resulting in cleaner unloading.

Lightweight: The U-shaped cargo box has reduced its weight through structural optimization. Using high-strength steel plates, the yield strength is high, and the impact resistance and fatigue resistance are better.

Contact Now E-Mail Telephone WhatsApp

Product Details

A frameless dump trailer is a frameless end dump trailer, the structure includes chassis, boxand lifting sys. Work by PTO supply oil to the cylinder, lifting box till to design angle, cargo slideout, improve unloading efficiency.

They were widely used in sandstone plants, construction mines, and mines, transport sand.gravel, earthwork, and mining, mainly used for transportation, cement, asphalt, coal, sandstone, etc.

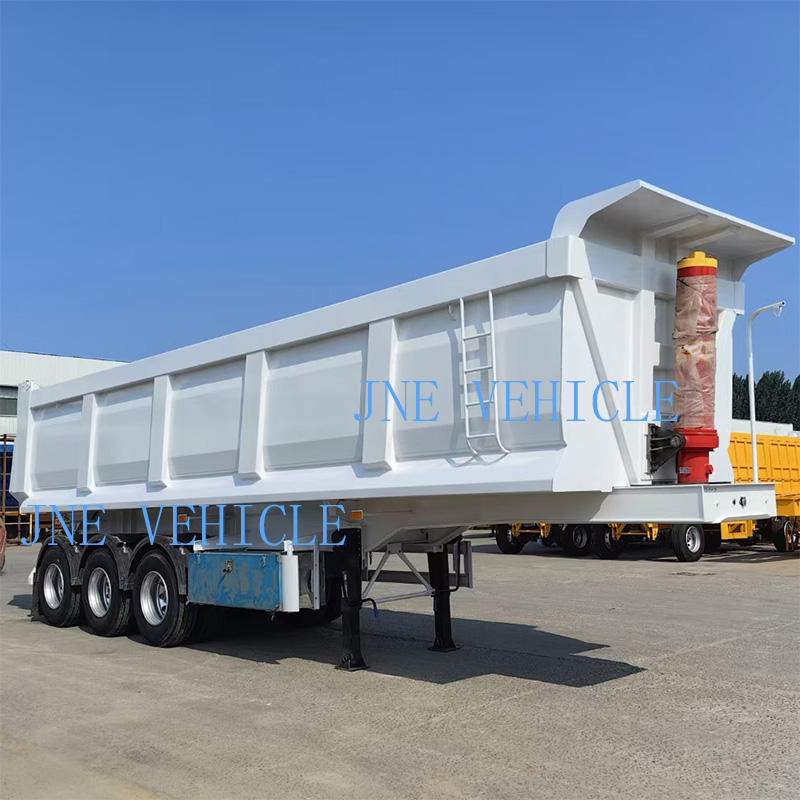

Tipper Trailer 50 Ton

Material:

Hardox 450 or equal wear and abrasion-resistant material box, T700 high tension beam, tareweight lighter 2000kg than normal material tipper, longer service time and lower fuelconsumption

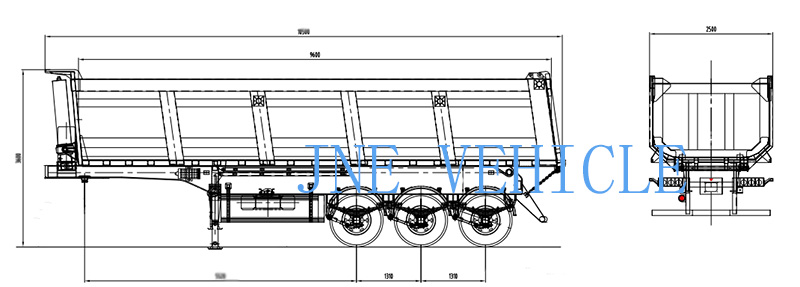

U section box:

U model box design and analysis, larger section area with lower barycentre, load more andunloading easier, saftly and efficiently

Chassis:

Double web for main beam design, stronger for multi road condition

Cylinder:

FC and FE model optional, higher operating pressure, help Max 45° tilt angle, reducingturnaround time with faster-ripping speed, increasing operating time with long service intervals

Brackets:

Improved design with better stress and fatigue resistance

Knock off:

Robust design precise actuation protect box working in safety angle

Tilt Shaft:

Heavy-duty design support working stable when tilting, more durable and safety

Fasten Sys:

Rear door auto fasten lock efficiency work, adjustable design keep suitable situation, easymaintenance and replace

Auxiliary support frame:

An auxiliary support frame support box with chassis, avoid box tilt, in order to work more safely

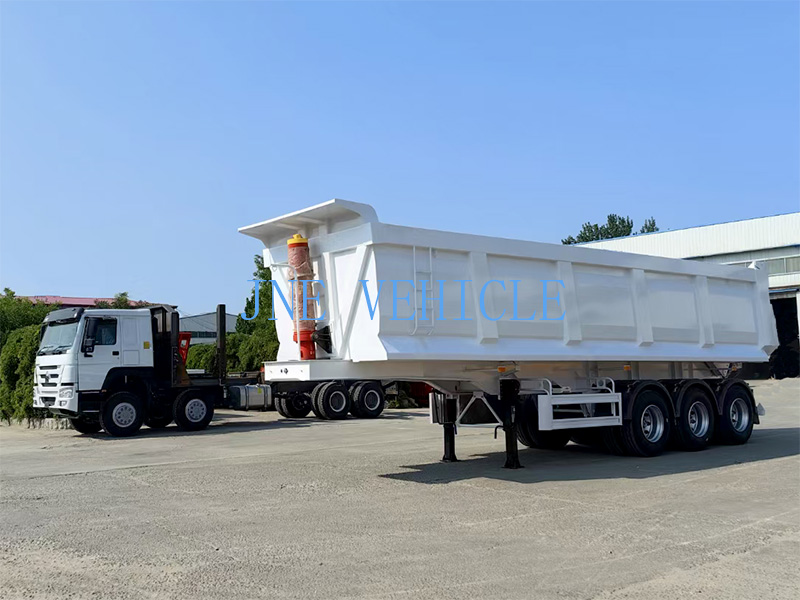

Tipper Trailer 50 Ton
