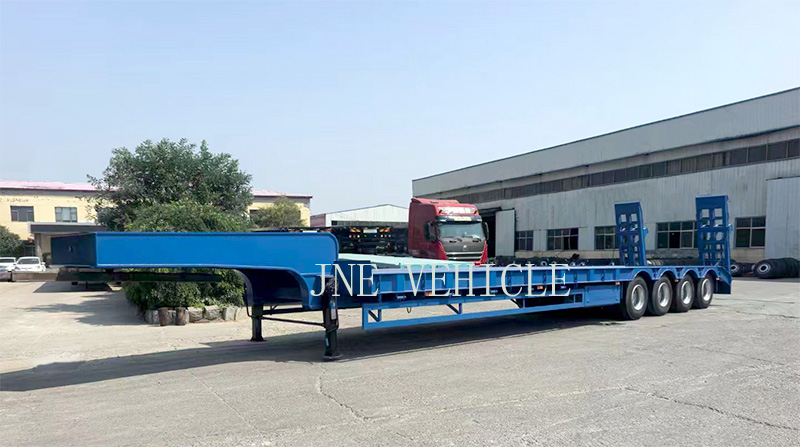

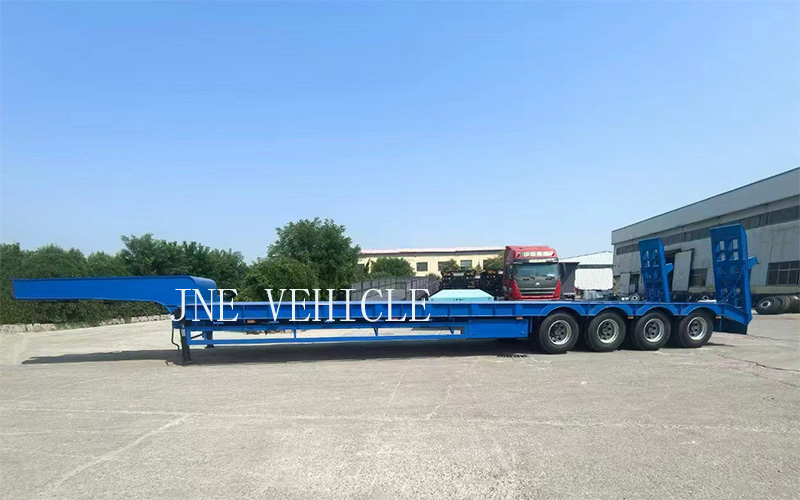

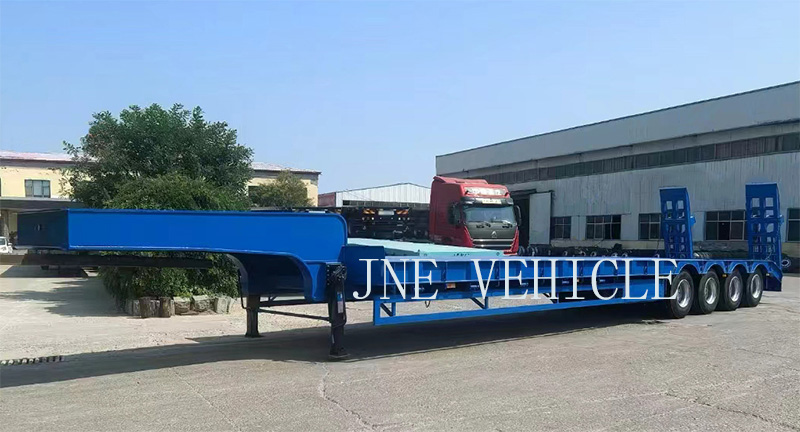

4-Axle Lowbed Trailer 120 ton

Frame structure: 4-Axle Lowbed Trailer 120 ton the frame is stepped, and the longitudinal beam section is I-shaped, with high rigidity and strength characteristics.

Applicable scenarios: Lowbed Trailer suitable for transporting various types of construction machinery, large equipment, and steel.

Customization options: It can be made into a pull-out type or a circular arc shape in the middle according to customer requirements to accommodate large diameter circular objects.

Load capacity: Designed for high concentrated loading of heavy equipment and large cargo, with a load capacity of approximately 120 tons.

Capacity: The 4-Axle Lowbed Trailer vehicle bridge passes through the main beam, effectively reducing the ground clearance of the cargo platform. The increased capacity of the vehicle can load larger diameter objects, making it an ideal transportation tool for transporting wind turbine towers and large-diameter goods.


Contact Now E-Mail Telephone WhatsApp
Product Details

The 120 ton low flatbed semi-trailer, with its unique design and powerful functions, has become a powerful assistant in the field of large cargo transportation.


4-Axle Lowbed Trailer 120 ton

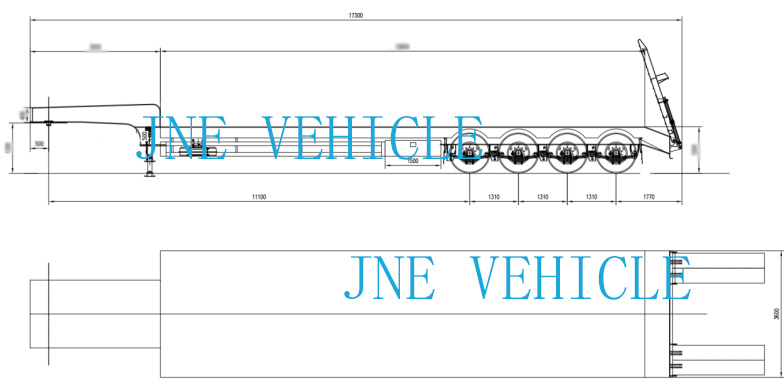

 4-Axle Lowbed Trailer 120 tonDimension:

Length: 17000mm

Width: 3000~3600mm

Height: Total height 3700mm (with folded ramps)

Platform size： 12500mm*3600mm

King Pin Height: Approx 1,330mm with the chassis level

Max. Payload: 120,000kg

 Steel Structure:

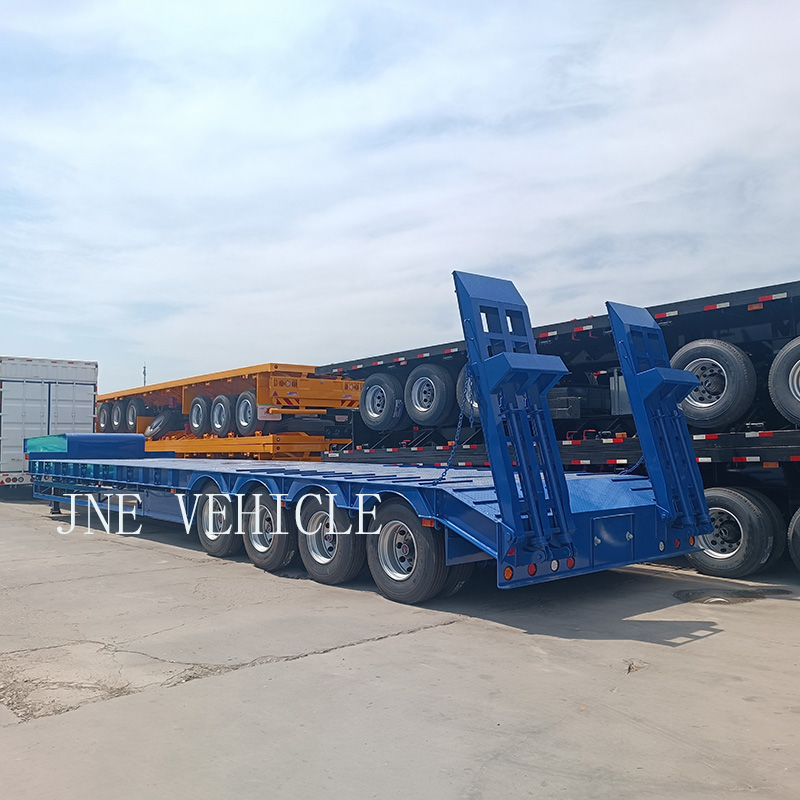

Structure: Goose-neck lowbed, with rear ramps.

Material: High strength low alloy steel Q345B is used for welded beam and Q235 is used for the fabricated parts.

Floor: Checkered sheet, thickness 5mm.

 Assemblies

King Pin: JOST 3.5’’ (90#) bolted king pin.

Landing Gear: Fuwa 2 speed with sand shoe. Lift capacity 28ton.

Axle: Square axle, 20 tons capacity each, 4 axles.

Tyre: 12.00R20 tyre, 12 pcs.

Brake System: Dual air brake system. None ABS.

Tool Box: One

Spare tire carrier:  One

 Painting: Color white, yellow, green etc.

Package: One unit as one package, to disassemble the rear ramps and place on loading platform.



4-Axle Lowbed Trailer 120 ton
