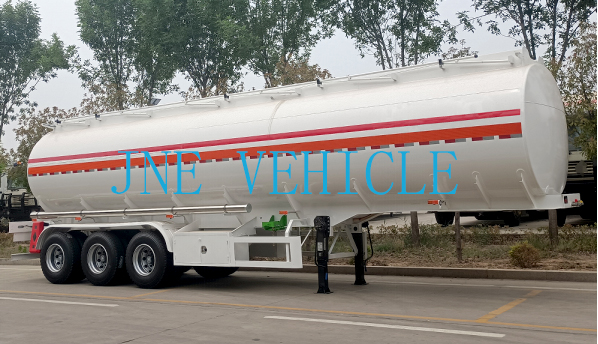

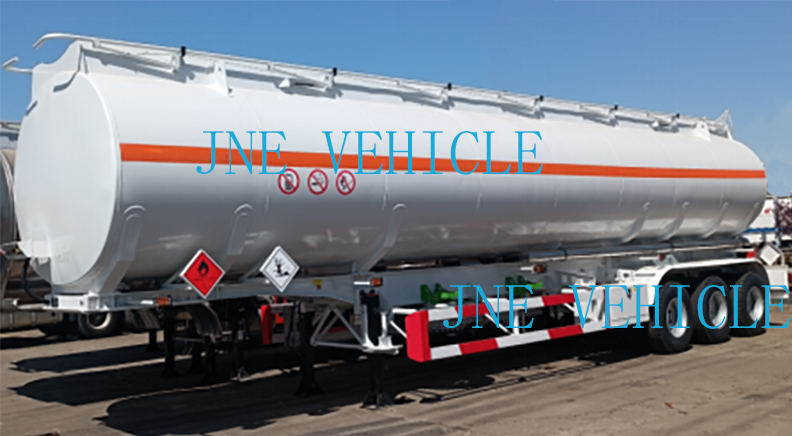

Carbon Steel Fuel Tank Trailer 50,000 Liters

Carbon Steel Fuel Tank Trailer plays an important role in the logistics transportation industry due to its unique tank structure, high safety, environmental friendliness, economy, and multifunctionality.

A Carbon Steel Fuel Tank Traileris divided into two parts: the oil tank part and the skeleton or driving part that supports the tank body. A semi-trailer oil tank truck is an oil tank truck that is connected to the trailer part by a towing head. Compared with ordinary single body oil tank trucks, semi-trailer oil tank trucks can effectively improve transportation efficiency when transporting oil. Reduce transportation costs and save fuel consumption under the same tonnage. The rear of a semi-trailer oil tanker truck is generally the same, with two axle rear double axle and three axle rear triple axle options. The towing head can be selected according to the needs.

The tank body is made of high-quality carbon steel with a diameter of 4mm or 6mm, manufactured according to national standards. It is available in oval or square circular shapes and can hold 1-4 types of oil products. Oil tank trucks can be equipped with single counting and double counting flow meters, as well as tax controlled computerized refueling machines. They can also be fitted with 10-15 meter automatic telescopic return reels and equipped with refueling guns. Edible oil products can be measured using a computerized measuring device for edible oil products.

Issues that drivers of oil tankers should pay attention to during operation:

① Check the working condition of each instrument during the operation of the oil tanker truck;

② Check if the steering system of the oil tanker is working properly while driving;

③ The hand and foot brakes of the oil tanker truck are abnormal during operation;

④ Check the engine, chassis, and tank body of the oil tanker for any abnormal noise or odor during operation;

⑤ During parking time, perform the following inspections on the oil tanker: feel the front and rear brake drums for overheating, check the tightness of tires and nuts, remove impurities from tire patterns, check for oil, water, and gas leaks, inspect the condition of steel plate springs, check for loose transmission shaft bolts, and inspect the appearance of the oil tank body and the pipeline system of the oil tanker.

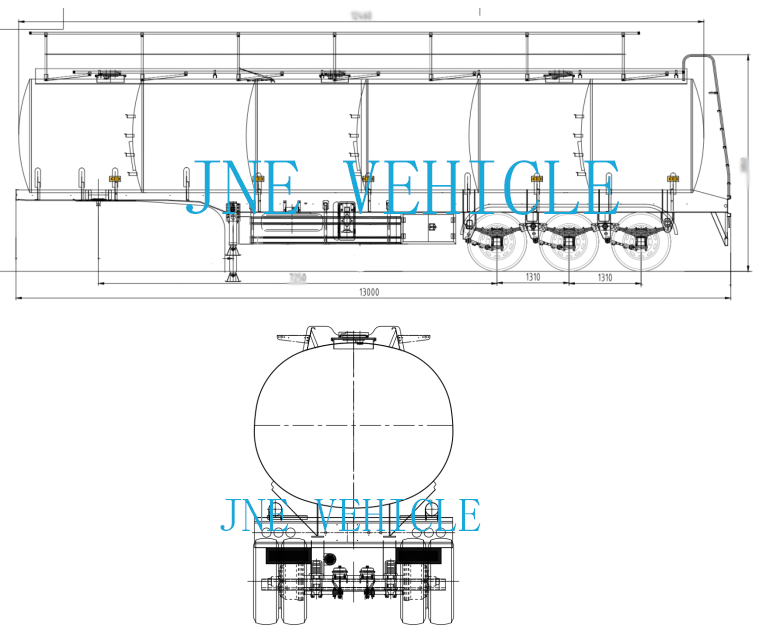

Drawing for reference:

Description:Fuel Tank Trailer

Overall dimension:13000*2500*3850mm

Capacity：50,000 Liters

Main beam:Carbon steel Q345B

Axle:Fuwa brand, Load capacity 13 ton each, 3 pcs,

Kingpin height:1300mm or design in accordance with tractor truck

Tyre:315/80R22.5 tubeless tyre, 12 pcs

Tool box:tandard, 1 pcs

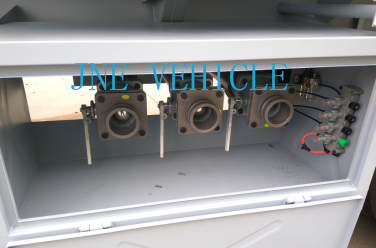

Valve box:Standard, 1 pcs

Light:LED lights

Receptacle:24 volt lighting system with modular wiring harness, 7 way European standards receptacle in front of the front bolster.
