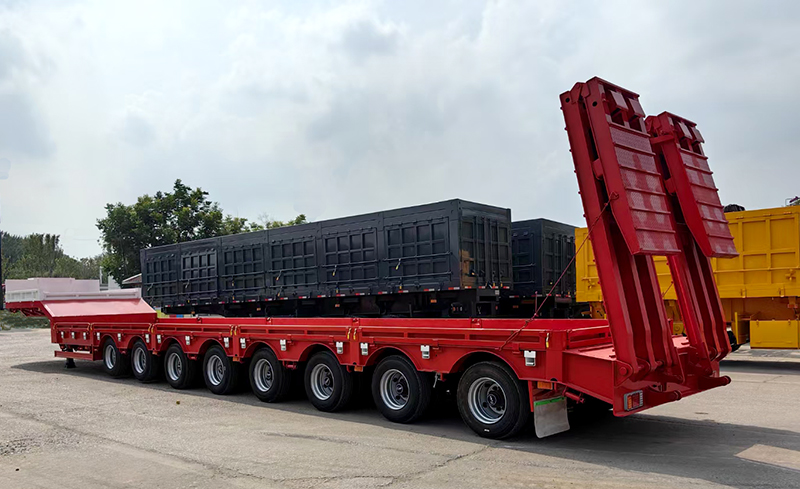

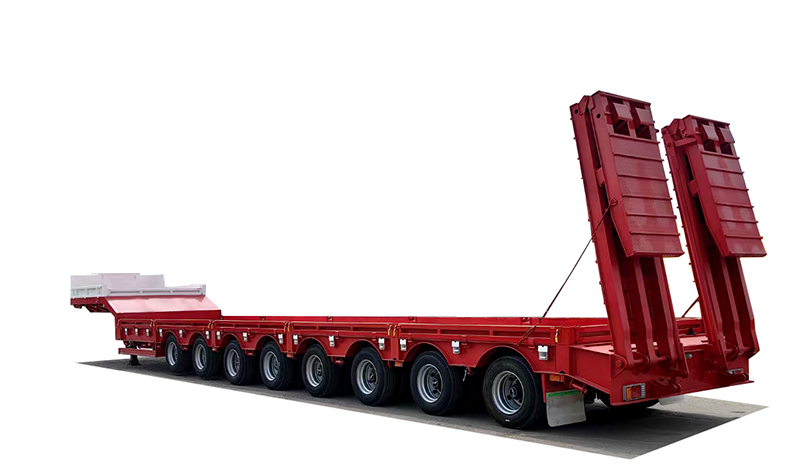

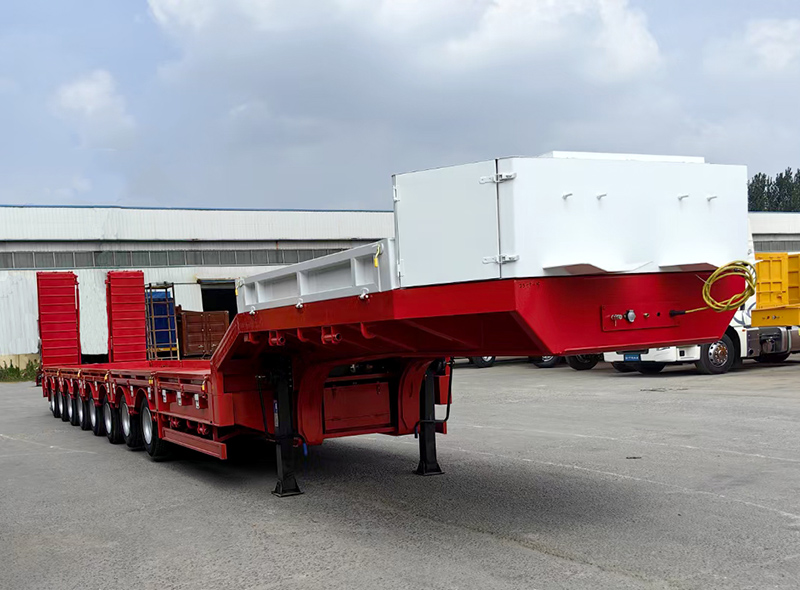

8 axle low bed trailer

8 Axle 100 Ton Low bed Trailer Specifications

8Axle lowboy trailer capacity: 100 to 120 tons

Axles: BPW or Certificated China brand

Steering: Self Steering or hydraulic steering axles

Accessories: JOST or China brand parking leg and kingpin

Chassis: ST Quality Steel usage

Suspension: Air or Mechanical Suspension

Brakes: ABS and EBS brake system

Rims: Steel Rims

Tires: Bridgestone, Goodyear brand tires

Loading Ramp: Hydraulic or Pneumatic Ramp

Loading Ramp

- lt is a pneumatic or hydraulic system. Ramp movement shall be provided by the installationof a covered button onto the tail part. The width of the ramp shall be 800 or 1000 mmaccording to lowbed.

Chassis

- Low Loader rack is welded by a submerged welding machine from 20 mm x 150 mm (ST 52.3A Quality) bottom and top flat steel and 10 mm ST 52.3 hub plate. it has the“I”section and alsohas 4 pieces

Platform

–  The top middle part of the platform shall be covered by a 3/4 mm thick metal sheet pursuant to utilization. Rubber or Hardwoods shall be installed onto the sides of the platform ( points where the pallet or wheels are) to provide maximum friction.

Brake System

–  Dual circuit brake hardware, 24” Service brake bellows fitted to axle 3 24×30” Emergency

brake fitted to axle 1 and axle 2 Load balancing distribution valve, Automatic or manual brake adjusters

– WAbco ABS, EBS brakes

100 Ton lowbed trailer feature

Material

Superior load-bearing capacity, reasonable structure, the main frame is made of 16Mn high-strength steel, which does not produce permanent deformation; it can be reinforced according to the actual situation.

Design

The 8 axle lowboy trailer adopts large gooseneck structure, the overall center of gravity is lower, the loading platform is stronger, the carrying platform is bigger, more suitable for the transportation of some large cargo, machinery and equipment, construction equipment. Meanwhile, it can also be designed as hydraulic and spring ramp and concave beam type, according to the actual use, we will provide you with more suitable suggestions.

Structure

The structure is constantly being improved to better match the loading and unloading requirements, and we can customize it to your needs, with an overall payload from 100 to 120 tons.

Performance

The axles, tires and other accessories are made of famous brands at home and abroad, with longer life and better quality

 The8 axle lowbed trailer from China. We have extensive experience in 8 axle 100/120 ton lowbed trailer manufacturing. We offer a variety of 8 axle lowbed trailer for sale. We can customize it according to your needs. We have achieved success in Africa, South America, and Southeast Asia, such as Tanzania, Nigeria, Kenya…

 We supply 100 ton lowbed trailer, 8 axle 120 tons lowboy trailer for sale, we can customize it according to your needs.
